26G Non Contact Radar Level Sensor, the maximum measurement distance can reach 80 meters. The antenna is further optimized and a new fast microprocessor is used. The signal analysis and processing is at a higher rate. It can be used for: various highly corrosive liquids, reactors or solid silos with very complex measurement conditions.

Non-contact radar, no wear and no pollution;
Shorter wavelength, better reflection on inclined solid surfaces;
Small beam angle, concentrated energy. While enhancing the echo capability, it is also conducive to avoiding interference;
Almost unaffected by corrosion and foam;
Almost unaffected by water vapor, temperature and pressure changes in the atmosphere;
Severe dust environment will not affect the operation of electromagnetic waves;
High signal-to-noise ratio. Better performance can be obtained even in fluctuating conditions;
High frequency. It is the best choice for measuring solids and low dielectric constant media.

26G Non Contact Radar Level Sensor Description

High frequency radar level meter usually uses radar waves in microwave frequency band (such as 26GHz). Because this frequency can penetrate most liquid media and has high measurement accuracy. Using non-contact measurement method, liquid level data can be obtained without direct contact with the liquid.

In addition, high frequency radar level meter also uses pulse signal and radio frequency technology to improve the accuracy and stability of measurement to cope with complex industrial environment.

High frequency radar level meter has a wide range of applications and can be used in industrial process control, tank management, environmental monitoring and other fields. It can adapt to different liquid media. Including liquid, solid or powdered substances. And it is suitable for containers of different sizes such as small containers and large tanks.

26G Non Contact Radar Level Sensor Technical Parameters

Model: 901

26G Non Contact Radar Level Sensor 901

Application: various corrosive liquids

Measuring range: 10 meters

Process connection: thread, flange

Process temperature: -40～130℃

Process pressure: -0.1～0.3 MPa

Accuracy: ±5mm

Protection level: IP67

Frequency range: 26GHz

Power supply: two-wire (DC24V)/four-wire (DC24V/AC220V)

Explosion-proof level: Exia ⅡC T6 Ga/Exd IIC T6 Gb

Casing: aluminum single chamber/aluminum double chamber/plastic/stainless steel single chamber

Signal output: 4…20mA/HART (two-wire/four-wire)/RS485 Mod bus

Model: 902

26G Non Contact Radar Level Sensor 902

Application: Temperature-resistant, pressure-resistant, slightly corrosive liquids

Measurement range: 30 meters

Process connection: thread, flange

Process temperature: -40～130℃ (standard type) / -40～250℃ (high temperature type)

Process pressure: -0.1～4.0MPa

Accuracy: ±3mm

Protection level: IP67

Frequency range: 26GHz

Power supply: two-wire (DC24V) / four-wire (DC24V/AC220V)

Explosion-proof level: Exia ⅡC T6 Ga / Exd IIC T6 Gb

Shell: aluminum single chamber / aluminum double chamber / plastic / stainless steel single chamber

Signal output: 4…20mA/HART (two-wire/four-wire) / RS485 Mod bus

Model: 902T

26G Non Contact Radar Level Sensor 902T

Application: Corrosive liquid, steam, volatile liquid

Measuring range: 20 meters

Process connection: flange

Process temperature: -40～130℃ (standard type) / -40～250℃ (high temperature type)

Process pressure: -0.1～2.0MPa

Accuracy: ±3mm

Protection level: IP67

Frequency range: 26GHz

Power supply: two-wire (DC24V) / four-wire (DC24V/AC220V)

Explosion-proof level: Exia ⅡC T6 Ga / Exd IIC T6 Gb

Shell: aluminum single chamber / aluminum double chamber / plastic / stainless steel single chamber

Signal output: 4…20mA HART (two-wire / four-wire)RS485 Mod bus

Model: 903

26G Non Contact Radar Level Sensor 903

Application: solid materials, strong dust, easy to crystallize, condensation occasions

Measurement range: 70 meters

Process connection: universal flange

Process temperature: -40～130℃ (standard type) / -40～250℃ (high temperature type)

Process pressure: -0.1～4.0 MPa (flat flange); -0.1～0.3 MPa (universal flange)

Accuracy: ±15mm

Protection level: IP67

Frequency range: 26GHz

Power supply: two-wire (DC24V) / four-wire (DC24V/AC220V)

Explosion-proof level: Exia ⅡC T6 Ga / Exd IIC T6 Gb

Casing: aluminum single chamber / aluminum double chamber / plastic / stainless steel single chamber

Signal output: 4…20mA/HART (two-wire/four-wire) / RS485 Mod bus

Model: 904

26G Non Contact Radar Level Sensor 904

Application: solid materials, strong dust, easy to crystallize, condensation occasions

Measurement range: 80 meters

Process connection: thread, universal flange

Process temperature: -40～130℃ (standard type) / -40～250℃ (high temperature type)

Process pressure: -0.1～0.3MPa

Accuracy: ±15mm

Protection level: IP67

Frequency range: 26GHz

Power supply: two-wire (DC24V) / four-wire (DC24V/AC220V)

Explosion-proof level: Exia ⅡC T6 Ga / Exd IIC T6 Gb

Casing: aluminum single chamber / aluminum double chamber / plastic / stainless steel single chamber

Signal output: 4…20mA/HART (two-wire/four-wire) / RS485 Mod bus

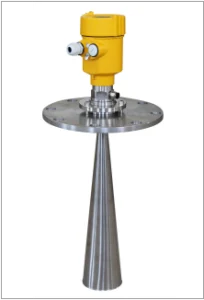

Model: 905

26G Non Contact Radar Level Sensor 905

Application: solid particles, powder

Measuring range: liquid 30 meters / solid block 20 meters / solid powder 15 meters

Process connection: thread, flange

Process temperature: -40～130℃ (standard type) / -40～250℃ (high temperature type)

Process pressure: -0.1～4.0 MPa (flat flange); -0.1～0.3 MPa (universal flange)

Accuracy: ±15mm

Protection level: IP67

Frequency range: 26GHz

Power supply: two-wire (DC24V) / four-wire (DC24V/AC220V)

Explosion-proof level: Exia ⅡC T6 Ga / Exd IIC T6 Gb

Casing: aluminum single chamber / aluminum double chamber / plastic / stainless steel single chamber

Signal output: 4…20mA/HART (two-wire/four-wire) / RS485 Mod bus

Model: 906

26G Non Contact Radar Level Sensor 906

Application: Sanitary liquid storage containers, highly corrosive containers

Measuring range: 20 meters

Process connection: flange

Process temperature: -40～130℃

Process pressure: -0.1～4.0MPa

Accuracy: ±3mm

Protection level: IP67

Frequency range: 26GHz

Power supply: two-wire (DC24V)/four-wire (DC24V/AC220V)

Explosion-proof level: Exia ⅡC T6 Ga/Exd IIC T6 Gb

Casing: aluminum single chamber/aluminum double chamber/plastic/stainless steel single chamber

Signal output: 4…20mA/HART (two-wire/four-wire)/RS485 Mod bus

Model: 908

26G Non Contact Radar Water Level Sensor 908

Application: Rivers, Lakes, Shoal

Measuring Range: 30 meters

Process Connection: Thread G1½ A″ /Frame /Flange

Temperature: -40℃ ~ 100℃

Process Pressure: Normal pressure

Precision: ± 3mm

Frequency Range: 26GHz

Protection Grade: IP67 / IP65

Power Supply: (6 – 24V) DC / Four-wire; 24V DC / Two wire

The Signal output: RS485 / Modbus ( 6~24V DC);4~20mA / Hart Two wire ( 24V DC)

The Scene Display: Optional

Outer Covering: Aluminum / Plastic /Single chamber

Model: 909

26G Non Contact Radar Water Level Sensor 909

Application: Rivers, Lakes, Shoal

Measuring Range: 70 meters

Process Connection: Thread G1½ A″ /Frame /Flange

Temperature: -40℃ ~ 100℃

Process Pressure: Normal pressure

Precision: ± 10mm

Frequency Range: 26GHz

Protection Grade: IP67 / IP65

Power Supply: (6 – 24V) DC / Four-wire; 24V DC / Two wire

The Signal output: RS485 / Modbus ( 6~24V DC); 4~20mA / Hart Two wire ( 24V DC)

The Scene Display: Optional

Outer Covering: Aluminum / Plastic / Single chamber

Get Non-Contact Radar Level Sensors

Non Contact Radar Level measurement is a high-precision level measurement technology. It uses a transmission frequency of up to 26GHz.

Sino-Inst’s Non Contact Radar Level Sensors can be widely used to measure the distance and level of liquids, slurries and viscous materials.

It can also be used to measure solid media such as powders, particles, and blocks. Even in dusty and stirring applications, stable measurements can be achieved.

Products Categories

Coriolis Mass Flow Meter

Thermal Gas Mass Flow Meter

Differential Pressure Flow Meter

Electromagnetic Flowmeter

Ultrasonic Flow Meter

Vortex Flowmeter

Turbine Flowmeter

Positive Displacement Flow Meters

Compact Pressure Sensor/Transmitter

High Temperature Pressure Transmitter

Cryogenic Pressure Transducer

High Temperature Melt Pressure Transmitter

Explosion-Proof Pressure Transmitter

Differential Pressure Transmitter

Hydrostatic Level Transmitter

Ultrasonic Level Transmitter

Radar Level Meter

Paperless Recorder

Get A Free Quote

High Frequency Non Contact Radar Level Meter Applications

Radar level sensor measurement technology is widely used in many fields such as petrochemical, pharmaceutical, food and beverage, water treatment, environmental protection, etc.

Applicable industries:

Chemical and petrochemical
Electric power
Steel and metallurgy
Minerals
Paper and pulp
Water and sewage
Food and beverage
Pharmaceutical

Applicable working conditions:

Intermediate silo
Storage silo
Hopper
Storage tank
Process tank
Mixing tank
Pool
Reservoir, etc.

In the petrochemical industry, radar level sensors are widely used in liquid level monitoring and control of equipment such as storage tanks and reactors. It can accurately measure the height of liquids such as oil products and chemical raw materials. Help production companies to grasp the storage volume in real time, adjust production plans in time, and ensure production safety.

In the pharmaceutical industry, radar level sensors are also used in the transportation and storage equipment of liquid medicines. Ensure accurate measurement of liquid medicines and smooth pipelines.

In the food processing industry, radar level sensors can accurately measure the liquid level height of food raw materials, liquid seasonings, etc. Ensure the raw material delivery and process control during the production process

In addition, radar level sensors also play an important role in water treatment, environmental protection and other fields.

More Detail

How does a radar level sensor work?

The radar level antenna emits a narrow microwave pulse, which is transmitted downward through the antenna.

After the microwave contacts the surface of the measured medium, it is reflected back and received by the antenna system again. The signal is transmitted to the electronic circuit part and automatically converted into a level signal. Because the microwave propagation speed is extremely fast, the time taken for the electromagnetic wave to reach the target and return to the receiver by reflection is almost instantaneous.

A: Range setting
B: Low position adjustment
C: High position adjustment
D: Blind area range

The reference surface for measurement is: the bottom surface of the thread or the sealing surface of the flange.

Note: When using the radar level meter, be sure to ensure that the highest material level cannot enter the measurement blind area (area shown in D in the figure).
