Handheld Portable Ultrasonic Water Depth Gauge

Handheld Portable Ultrasonic Water Depth sensor

Ultrasonic water depth gauge Dual frequency sonar

Handheld-Portable Ultrasonic Water Depth Gauge/Sensor

Handheld-Portable Ultrasonic Water Depth Gauge/Meter is the preferred instrument for measuring the water depth of reservoirs, lakes, rivers, shallow seas, etc.! The measuring range can be selected from 50m, 100m, 200m, and the maximum is 300m.

Portable;
Powered by lithium battery;
Both fresh water and sea water can be measured;
Real-time display;
Easy to install;
High-precision probe;
Stainless steel material;
Waterproof and corrosion-resistant;
Customizable range;
Supports data transmission;

Handheld-Portable Ultrasonic Water Depth Meter Description

Ultrasonic water depth detector is a sounding instrument for measuring water in reservoirs, lakes, rivers, shallow seas, etc.

When measuring the depth, the ultrasonic transducer is placed on the water surface or at a fixed position in the water. The current water depth is automatically calculated by the instrument using the propagation principle of ultrasonic waves in water.

This instrument adopts international advanced technology. It has perfect water depth measurement function, control function, data transmission function and human-computer communication function.

This machine integrates ultrasonic transceiver sensor, servo circuit, temperature compensation sensor and compensation circuit unit, display, control signal output and serial data or analog output unit (optional).

It has the characteristics of low maintenance, high reliability, long life, easy to use, simple operation and accurate measurement.

It is widely used in hydrological measurement, hydropower plants, reservoirs, shallow seas, lakes, river surveys, environmental waters, etc.

Handheld-Portable Ultrasonic Water Depth Gauge/Sensor is an ideal water depth measurement instrument for monitoring water depth.

Ultrasonic Water Depth Gauge Technical Parameters

Product number	SFCM
Maximum range	100m (optional 50m, 200m, 300m)
Detection blind spot	≤800mm (depending on the range)
Draft depth	Recommended draft ≥ 500mm
Detection accuracy	±0.5%F·S
Output signals	4~20mA, or RS485, or customized
Data storage	SD card storage optional;
	Timely recording, storage interval can be set;
	Storage format: time + machine number +water depth value, data can be downloaded
Display resolution	Min=1mm,Max=100mm
Display method	Multi-information LCM display + green backlight, four-digit water depth
Operating temperature	Sensor 0~40℃; Instrument -10℃~50℃
Working power	Built-in rechargeable 12V lithium battery with dedicated charger
Outlet method	Sensor lead 10m, instrument standard socket
Application medium	Fresh water, sea water (determined when ordering)
Protection level	Sensor IP68

Specifications other than the parameters in this table can be customized.

Get Water Depth Measurement Solutions

Compared with other traditional water depth meters, portable ultrasonic water depth sensors are more advanced in technology. And support SD card storage data. It can meet the needs of most users for water depth measurement in reservoirs, lakes, rivers, shallow seas, etc.!

We Sino-Inst also manufacture and supply other professional water level sensors. Choose the most suitable water level monitoring solution according to your unique measurement environment.

Products Categories

Coriolis Mass Flow Meter

Thermal Gas Mass Flow Meter

Differential Pressure Flow Meter

Electromagnetic Flowmeter

Ultrasonic Flow Meter

Vortex Flowmeter

Turbine Flowmeter

Positive Displacement Flow Meters

Compact Pressure Sensor/Transmitter

High Temperature Pressure Transmitter

Cryogenic Pressure Transducer

High Temperature Melt Pressure Transmitter

Explosion-Proof Pressure Transmitter

Differential Pressure Transmitter

Hydrostatic Level Transmitter

Ultrasonic Level Transmitter

Radar Level Meter

Paperless Recorder

Solid Powder Flowmeter

Get A Free Quote

Handheld-Portable Ultrasonic Water Depth Gauge Applications

Handheld-Portable Ultrasonic Water Meter is the most widely used water depth measurement tool.

River management: measure river depth. Provide important data for river desilting and management.
Reservoir management: monitor reservoir water depth and sludge accumulation. Ensure reservoir safety and effective operation.
Port maintenance: measure port water depth. Guide ships to enter and exit the port safely. At the same time, monitor sludge accumulation to ensure port smooth operation.
Water conservancy project: During the construction of water conservancy projects, accurately measure water depth and sludge thickness. Ensure project quality and safety.
Channel survey, underwater topography survey, underwater positioning;
Seaway (river channel) measurement;
Dock\boat depth measurement;
Depth measurement of turbid rapid river water after rain;
Hydrological depth monitoring;
Depth detection of water tanks such as hydropower plants;

More Detail

Product Configuration

Handheld meter (built-in lithium battery) * 1
Sensor (including cable 50m) * 1
Dedicated charger * 1
Dedicated signal plug (including cable 1m) * 1
Steel connecting rod for sensor 30cm/piece (including connecting piece) * 2 pieces
Aluminum alloy carrying case * 1

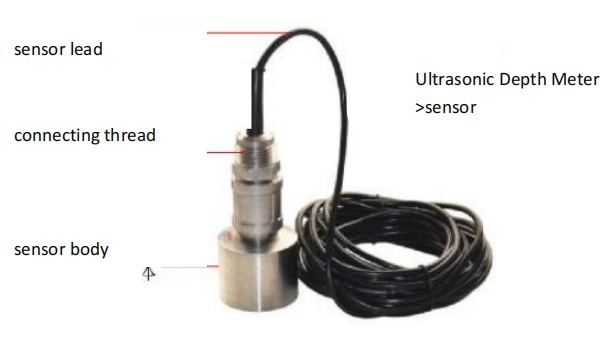

Ultrasonic Water Depth Sensor Dimensions

Keyboard Operation and Wiring

Handheld-Portable Ultrasonic Water Depth Gauge/Sensor - Sino Insts

Product Configuration Handheld meter (built-in lithium battery) * 1 Sensor (including cable 50m) * 1 Dedicated charger * 1 Dedicated signal plug (including cable 1m) * 1 Steel connecting rod for sensor 30cm/piece (including connecting piece) * 2 pieces Aluminum alloy carrying case * 1 Ultrasonic Water Depth Sensor Dimensions Keyboard Operation and Wiring
