Ultrasonic Level Transmitter
Ultrasonic level transmitters are a popular class of non-contact, cost-effective, continuous level measurement instruments. Suitable for sealed tanks, open pools or other containers.

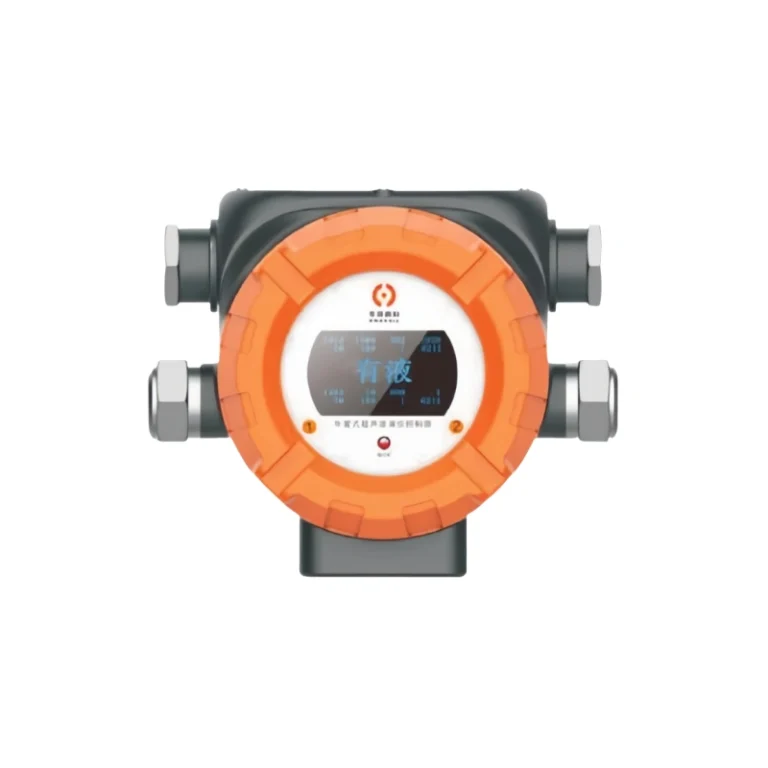

Sino-Inst offers general purpose and explosion-proof Exd IIC T6 Gb ultrasonic level transmitters. There are various forms to choose from. Including integral, split, external, portable and more.
- Non-contact measurement, stable and reliable operation.
- Not easily affected by the viscosity and density of the liquid.
- High cost performance and low maintenance cost.
- Various product styles, including integrated, split, external, etc.
- Optional anti-corrosion and explosion-proof styles.
Featured Ultrasonic Level Transmitters
Sino-Inst supplies a full range of ultrasonic level measuring instruments, including general-purpose, explosion-proof, split, external, portable, etc. Customization of measurement parameters is supported.
Non-contact measurement is adopted, and the measured medium is almost unlimited. Suitable for various corrosive and chemical occasions.
Wide range, multiple forms are optional with high accuracy. Remote signal output, PLC system monitoring.
Adopt new waveform calculation technology to improve the measurement accuracy of the instrument. It has the function of suppressing interference echo to ensure the authenticity of the measured data.
It has strong anti-interference ability, and can arbitrarily set upper and lower limit nodes and online output adjustment. And with on-site display. You can choose analog quantity, switch quantity and RS485 output.
Get Better Level Measurement Solution
Sino-Inst has been focusing on customizing liquid level measurement solutions for users for many years. We support parameter customization and OEM. Can achieve liquid level measurement at a better price.
Ultrasonic Level Transmitters Applications
Measurement of liquid level in water pools, sewage pools, etc.
Ultrasonic Level Transmitters are widely used in level meter measurement projects in water plants, wastewater treatment plants, chemical reagent plants, dye plants, pulp mills and other factories. It is one of the main level measurement methods in modern intelligent automation industry.
Tank liquid level-liquid level difference monitoring
Ultrasonic level measurement technology has unique advantages in measuring tank liquid level. One common method is to make a hole on the top of the tank and install an ultrasonic level sensor for measurement. Another method is to use an external sensor. For tanks that cannot be opened, an ultrasonic level sensor can be attached externally. It is convenient and efficient.
Diesel and other oil storage tank liquid level measurement
For diesel tanks or other oil tanks, explosion-proof ultrasonic level transmitters can meet the measurement requirements. And can be configured with signal output and relay output. Can be used for tank high and low level alarm.
Water level monitoring in lakes, reservoirs, shallow seas, etc.
Ultrasonic level measurement technology is suitable for water level measurement in rivers, lakes, reservoirs, estuaries, channels, ship locks and various hydraulic structures. This real-time monitoring capability can help water conservancy departments to understand water level conditions in a timely manner, predict floods, and provide accurate data support for reservoir scheduling and flood control decisions.
More Information
Ultrasonic Level Transmitter Working Principle
Ultrasonic level meter working principle:
Ultrasonic waves propagate in gas, liquid and solid with a certain propagation speed. When propagating in the medium, ultrasonic waves will be absorbed and attenuated. The attenuation in gas is the largest. The attenuation in solid is the smallest.
Ultrasonic waves will reflect and refract when passing through the interface of two different media. For interfaces with large differences in acoustic impedance, it is almost total reflection.
The time interval from transmitting ultrasonic waves to receiving the transmitted signal is related to the position of the interface. Ultrasonic level meters use this characteristic of ultrasonic waves to measure the level.
The transmitter and receiver of ultrasonic level meters can be installed at the bottom or the top of the container. The transmitted ultrasonic waves are emitted at the interface and received by the receiver. By measuring the time interval from the transmission to the reception of ultrasonic waves, the height of the object can be measured.
As shown in the figure below: The speed of sound in the medium is c. The time difference between the echo and the transmitted pulse is t. Then, according to the formula D=c×t/2, the distance D between the sensor and the surface of the object is calculated.
Please understand the measurement principle of ultrasonic level meters in conjunction with the figure below. The calculation formula is: L=E-D. E is the empty tank distance. F is the measuring range (full tank distance). L is the material level. BD is the measurement blind area. D is the distance from the sensor housing plane to the liquid surface (or material surface).
