Radar Level Meter
Radar Level Meter, also called radar level transmitter, is a type of efficient and accurate level measurement device. It is suitable for both liquids and solids.
Sino-Inst radar level meters are superior to other measurement methods due to their very high measurement accuracy. And the measurement is not affected by temperature, pressure and dust.
- Various measuring ranges can be configured. Up to 150m;
- Measurement is not affected by temperature, pressure and dust;
- Different antenna types are available. For example: for corrosive or abrasive media, high pressure or high temperature and applications with agitators;
- Also suitable for hazardous areas, functional safety or food grade applications;
- The measurement accuracy is very high, up to ±1mm, ±2mm;
Featured Radar Level Meters
Sino-Inst supplies a full range of radar level meters. Including high-precision non-contact radar level meters, contact guided wave radar level meters, new low-cost radar level sensors, and radar water level meters, etc.
Radar Level Meters have a wide range of applications, and can measure liquids, particles, slurries, etc. It is not affected by the physical properties of the liquid, such as density and concentration. High temperature and high pressure styles can be customized.
Interference echoes caused by joints within the beam range. Interference echoes caused by noise from feeding or discharging can be automatically suppressed by internal fuzzy logic control.
It has fault alarm and self-diagnosis functions. It can analyze faults according to the error code prompted by the operation display module. It can identify faults in time and eliminate them.
It can be used in various measurement occasions such as vacuum measurement, liquid level measurement or material level measurement with almost no interference. It provides accurate, reliable and long-term stable analog or digital level signals.
Choose Radar Level Measurement
80G radar level meters, or guided wave radar level transmitters, both have unique advantages! Perfect measurement even under special process conditions. Such as high temperature, high pressure, steam, corrosion, etc.
Sino-Inst offers a comprehensive range of radar level measurement devices. It can be used in a variety of different industries. Such as water/wastewater, food industry, life sciences or process industry.
Radar Level Meters Applications
Chemical Industry
In the chemical industry, radar level meters are suitable for level management of liquid storage tanks, reactors and mixing tanks in the chemical production process. Because some chemical substances are corrosive, flammable and explosive. The use of radar level meters can ensure the safety and accuracy of measurement. Avoid accidents in the production process.
Cement Industry
In the cement industry, level monitoring of raw material warehouses, raw material homogenization warehouses, clinker warehouses, finished product warehouses, fly ash warehouses, raw coal warehouses, gypsum warehouses, cement slag warehouses, etc. is essential to ensure the stability of the production process and product quality. Radar level meters can provide reliable level data. Provide support for material control and optimization in the production process.
Coal Industry
In the coal industry, radar level meters are mainly used for level monitoring of raw coal warehouses, pulverized coal warehouses, coal gangue storage levels, coal washing pools, etc. By real-time monitoring of the material level height, it can ensure the smooth progress of coal production. At the same time, it improves production efficiency and reduces energy consumption.
Petrochemical and Oil Refining Industries
In the petrochemical and oil refining industries, radar level gauges are mainly used for liquid level monitoring and control of equipment such as storage tanks, reactors and separators. Due to its advantages of high precision, high stability and non-contact measurement. Radar level gauges can accurately measure liquid levels and provide timely feedback on liquid level changes. It provides strong support for material control and optimization in the production process.
More Information
Working Principle of Radar Level Meter
The radar level meter transmits very short microwave pulses with very low energy, which are transmitted and received by the antenna system. Radar waves run at the speed of light. The running time can be converted into a level signal by electronic components. A special time extension method can ensure stable and accurate measurement in a very short time.
Electromagnetic waves propagate at the speed of light in the air. The distance between the radar level meter and the material surface can be expressed by the following formula:
D = (1/2) * CT
Where:
D ———The distance between the radar level meter and the material surface;
C ———The speed of light
T ———Pulse time.
Then the liquid level is:
L = E – D
Where:
L ———Liquid level;
E ———Total height of the tank;
D ———Empty height.
Even in the presence of false reflections, the new microprocessor technology and the unique ECHOFOX- software can accurately analyze the level echo. By entering the container size, the upper distance value can be converted into a signal proportional to the level. The instrument can be debugged with an empty tank.
What Are the Different Types of Radar Level Gauges?
Sino-Inst’s radar series level transmitters are mainly differentiated by different frequencies. They mainly include:
- 80G frequency modulation radar level transmitter;

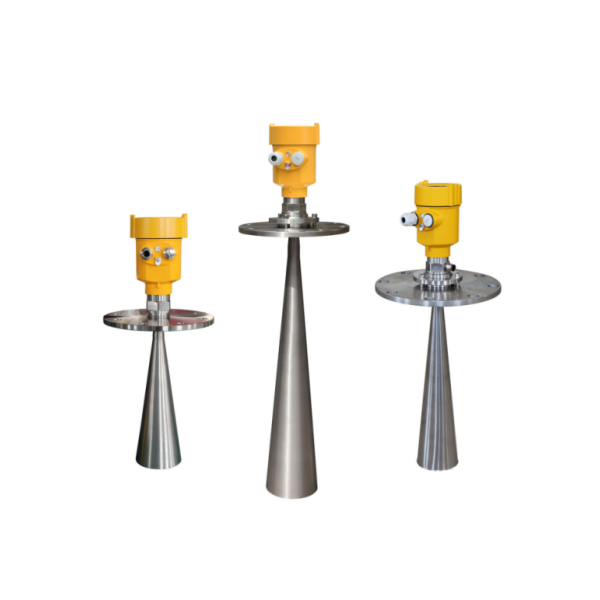

- 26G high frequency radar level transmitter;
- 500MHz-1.8GHz guided wave radar level transmitter.
