What Is a Coriolis Mass Flow Meter?
Coriolis mass flow meter is a new type of traffic measuring instrument developed by our company in accordance with the principle of Korioli. Can directly measure the mass flow and density of the fluid in the closed pipeline. The flow meter is composed of the flow measurement sensor and the signal converter.
Coriolis mass flow meter is a device that measures liquid, steam or gas quality flow through the pipeline system. It is considered to be the most accurate quality flowmeter type, and is widely used in industrial applications, laboratories and other situations that require high precision.
Coriolis mass flow meter uses motion to measure the rate of liquid and gas flowing through the pipeline. Coriolis mass flow meter is accurate and widely used, which can be used to measure various fluids.
How Does a Coriolis Flow Meter Work?

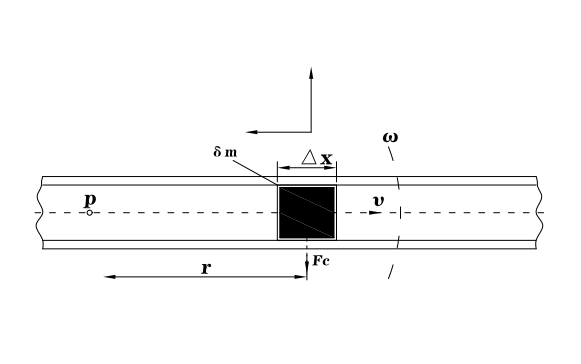

Coriolis mass flow meter uses Korio’s effect to measure quality flow. That is, when the fluid flows through the vibration pipe, it will generate a proportional to reversing force to the tube, and then the sensor will detect the torture force to determine the flow.
Coriolis mass flow meter measures quality through inertia. When a mass point in the tube with P as a fixed point (rotation center) is used to move the rotation center or the departure center, it will generate an inertial force. The liquid or gas flows through a pipe vibration vibration by a small force.
For specific rotation pipes, the frequency characteristics are certain, so the quality flow can be measured directly or indirectly. In essence, the faster the fluid flows, the greater the torsional force in the tube. Therefore, quality flow can be measured directly without considering pressure or temperature changes.
Coriolis Mass Flow Meter Series and Characteristics
T Series Mass Flow Meter for Liquids and Gases
T Series Mass Flow Meter for Liquids and Gases has a triangular sensor structure. The minimum diameter can be DN3. More suitable for low flow measurement to ensure measurement accuracy.
- Able to directly measure the mass flow of fluid (this is of great significance for the measurement and control of production processes such as energy measurement and chemical reactions);
- High measurement accuracy (measurement accuracy can be guaranteed to be between 0.1% and 0.5%);
- The measurable ratio is large. Generally, the measurable ratio to ensure basic accuracy is 10:1 or 20:1;
- It has a wide range of applications. In addition to normal fluid (gas and liquid) measurements, it can also measure industrial media that are difficult to measure with general fluid measuring instruments. Such as high viscosity fluids, various slurries, suspensions, etc.;
- Completely provide mass flow, volume flow, density, temperature measurement and calculation parameters. Reliable results can be obtained without cumbersome conversions, and the volume can be directly replaced;
- Compact triangular shell structure saves installation space, is simple to install, and does not require upstream and downstream straight pipe sections;
Digital Coriolis Flow Meter U Series for Mass, Volume, & Density
The U Series Digital coriolis flow meter provides accurate and stable flow and density measurements. Sino-Inst’s Digital coriolis flow meters are used in all industries as well as process control, trade settlement, high temperature, high pressure, high viscosity fluids, etc.
- High accuracy measurement ±0.1~0.2%;
- Broad application range: 316L stainless steel structure is suitable for a variety of media, and the instrument coefficient is not affected by liquid measurement. Ability to accurately measure gases;
- Multi-variable flow: Provides accurate measurement for a range of variables, including mass flow, volume flow, total flow, density and temperature, etc.;
- Adopt MVD multi-variable digital technology converter: the transition from analog signal processing to digital signal processing can produce stable signals, thereby improving response speed and measurement accuracy;
- Easy to use: LCD display, users can directly and conveniently perform configuration operations through touch buttons in English.
- Reliability and repeatability: Wear-free movable parts enable the instrument to maintain long-term reliability and repeatability, and ensure high-precision flow and density measurements in routine process control applications.
- The internal U-shaped measuring tube design of the sensor has no moving parts or any flow-blocking components, making it maintenance-free in the future.
- Low installation requirements, no front and rear straight pipe requirements, simple and convenient operation.
Straight Tube Coriolis Mass Flow Meter Z-Series
Straight tube coriolis mass flow meter Z-Series can measure mass flow, volume flow, temperature, density, concentration, etc. High-precision measurement while saving installation space and reducing pressure loss.
- Straight tube structure, small pressure loss. Energy saving can be increased by more than 50%;
- The sensor is small in size and light in weight. Small installation space;
- Accuracy 0.1%. The range ratio can reach 1:20;
- No material will be deposited, making it easy to clean. Can be made into hygienic type. Meet 3A food grade hygiene standards;
- The working frequency is high and it is not easily affected by external industrial vibration frequency interference;
- Low temperature type and high temperature type can be customized. The lowest measurable medium is -200℃.
- High pressure can be customized to 10MPa.
Application of Coriolis Mass Flow Meter
Coriolis mass flow meter is mainly used for many different applications in various industries and scientific applications -measurement of corrosive and clean gas and liquid.
Coriolis mass flow meter provides high precision in terms of quality flow measurement, density measurement, temperature measurement and viscosity. Because they can directly measure quality flow, even if the fluid density and temperature change, they are also very suitable for storage transfer applications and precise process control.
- Petroleum and natural gas
Measted crude oil, natural gas liquid, refined products, and the monitoring of traffic in the pipeline of the transfer.
- Chemical processing
Precisely measure the chemicals with different measurement density and viscosity during batch and continuous process.
- Food and drink
Monitor the ingredients flow in food production, including liquids such as juice, syrup and dairy products.
- Water and wastewater treatment
Precisely measure the water flow of the treatment plant and monitor sewage discharge.
- pharmaceutical
Exactly measure key drug components in the production process.
- Power generation
Monitor the fuel flow of the power plant, including coal slurry and liquid fuel.
- Research and development
Perform precise flow measurement in laboratory applications that need accurate quality flow data.
- Extract natural compounds
Improve the accuracy and quality of automatic extraction from plant and other raw materials.
The Benefits of the Use of Coriolis Mass Flow Meter
Coriolis mass flow meter is suitable for measurement or unknown gas or liquid mixture quality flow or measured supercritical gas. These equipment also have high accuracy and high repetitiveness.
- High -precision:Even if the properties of the fluid change, high -precision quality flow measurement can be provided.
- Direct quality flow measurement:Not only volume flow, which is essential for the application of fluid density changes.
- Two -way flow measurement:You can measure traffic in two directions.
- Wide range:You can measure various traffic with good accuracy.
- Density measurement :Measure the density of the fluid at the same time, thereby calculating the volume flow.
- Temperature compensation:Automatic compensation of the temperature of the fluid.
- Minimum pressure drop:Decreased pressure of flow meter.
- No mobile parts:Minimize wear and reduce maintenance needs.
- Wide application:Suitable for liquids with different viscosity and temperature.
The Limitations of Coriolis Mass Flow Meter
- High cost: Usually more expensive than other types of flowmeters, especially for large -sized pipelines.
- Sensitivity to low -density fluids: It may be difficult to accurately measure low -density fluids such as gas.
- Mixed phase flow challenge: It may be difficult to measure the flow of hybrid (liquid/steam).
- Size restrictions:Coriolis mass flow metermay be difficult to adapt to large -sized pipelines.
- Work temperature restrictions: may be restricted in extreme temperature environments.
- Installation Note: You may need a specific traffic directly to obtain the best performance.
In the oil and gas industries, there are many different traffic measurement options. Although the initial cost of the Coriolis mass flow meter is higher than the measurement of certain types, its accuracy, speed, quality measurement and low maintenance costs are pushing the demand for Coriolis mass flow meter to continue to grow.
When you need to measure and control accurate liquid and gas flow, consider using Coriolis mass flow meter or flow controller for your process. Our Sino-Inst Coriolis mass flow meter uses verified direct quality flow measurement technology. This technology can provide excellent accuracy and not affected by fluid characteristics (such as density and viscosity).
If you need to purchase a mass flow meter or have any related technical questions, please feel free to contact us.
